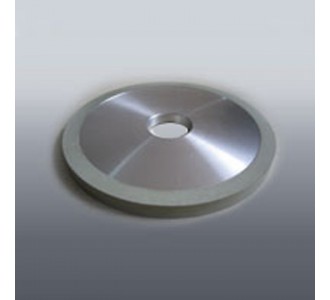

平行砂輪
平行砂輪 代 號：1A1/T2(P) 結合劑：B.M(S.Q)
主要用于外圓磨削、平面磨削、刃磨及切入磨削和成型磨削。

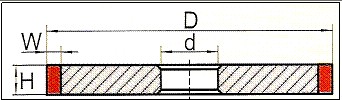

| 規格 | 金剛石（CBN)含量（克拉/片） | ||||||
| D | H | d | W | 75% | 100% | 125% | 150% |
| 16 | 8 | 4 | 2 | 2.32 | 3.10 | 3.87 | 4.65 |
| 16 | 10 | 4 | 2 | 2.90 | 3.87 | 4.84 | 5.81 |
| 16 | 16 | 4 | 2 | 4.64 | 6.19 | 7.74 | 9.29 |
| 18 | 8 | 6 | 2 | 2.65 | 3.54 | 4.42 | 5.31 |
| 18 | 10 | 6 | 2 | 3.32 | 4.42 | 5.53 | 6.63 |
| 18 | 16 | 6 | 2 | 5.31 | 7.08 | 8.85 | 10.62 |
| 18 | 20 | 6 | 2 | 6.64 | 8.85 | 11.06 | 13.27 |
| 20 | 4 | 6 | 3 | 2.12 | 2.82 | 3.53 | 4.23 |
| 20 | 6 | 6 | 3 | 3.17 | 4.23 | 5.29 | 6.35 |
| 20 | 8 | 6 | 3 | 4.23 | 5.64 | 7.05 | 8.46 |
| 20 | 10 | 6 | 3 | 5.29 | 7.05 | 8.81 | 10.57 |
| 20 | 12 | 6 | 3 | 6.35 | 8.46 | 10.58 | 12.69 |
| 20 | 16 | 6 | 3 | 8.46 | 11.28 | 14.10 | 16.92 |
| 20 | 20 | 6 | 3 | 10.57 | 14.10 | 17.62 | 21.15 |
| 25 | 4 | 6 | 3 | 2.74 | 3.65 | 4.56 | 5.47 |
| 25 | 6 | 6 | 3 | 4.11 | 5.47 | 6.85 | 8.21 |
| 25 | 8 | 6 | 3 | 5.47 | 7.30 | 9.12 | 10.95 |
| 25 | 10 | 6 | 3 | 6.84 | 9.13 | 11.40 | 13.69 |
| 25 | 12 | 6 | 3 | 8.21 | 10.95 | 13.68 | 16.42 |
| 25 | 16 | 6 | 3 | 10.95 | 14.60 | 18.25 | 21.90 |
| 25 | 20 | 6 | 3 | 13.68 | 18.25 | 22.80 | 27.37 |
| 30 | 10 | 10 | 3 | 8.40 | 11.20 | 14.00 | 16.80 |
| 30 | 16 | 10 | 3 | 13.44 | 19.72 | 22.40 | 28.68 |
| 30 | 20 | 10 | 3 | 16.80 | 22.40 | 28.00 | 33.60 |
| 40 | 4 | 10 | 3 | 4.60 | 6.14 | 7.67 | 9.21 |
| 40 | 6 | 10 | 3 | 6.90 | 9.21 | 11.50 | 13.81 |
| 40 | 8 | 10 | 3 | 9.21 | 12.28 | 15.35 | 18.42 |
| 40 | 10 | 10 | 3 | 11.51 | 15.34 | 19.18 | 23.01 |
| 40 | 12 | 10 | 3 | 13.81 | 18.41 | 23.02 | 27.62 |
| 50 | 4 | 10 | 3 | 5.85 | 7.80 | 9.75 | 11.70 |
| 50 | 6 | 10 | 3 | 8.77 | 11.70 | 14.62 | 17.55 |
| 50 | 8 | 10 | 3 | 11.70 | 15.59 | 19.50 | 23.39 |
| 50 | 10 | 10 | 3 | 14.62 | 19.49 | 24.37 | 29.42 |
| 50 | 12 | 10 | 3 | 17.54 | 23.39 | 29.24 | 35.09 |
| 50 | 16 | 10 | 3 | 23.39 | 31.39 | 38.98 | 46.78 |
| 50 | 20 | 10 | 3 | 29.24 | 38.98 | 48.72 | 58.84 |
| 60 | 6 | 10 | 3 | 10.64 | 14.18 | 17.73 | 21.27 |
| 60 | 8 | 10 | 3 | 14.18 | 18.91 | 23.64 | 28.37 |
| 60 | 10 | 10 | 3 | 17.73 | 23.64 | 29.55 | 35.37 |
| 60 | 16 | 10 | 3 | 28.37 | 37.82 | 47.28 | 56.73 |
| 60 | 20 | 10 | 3 | 35.46 | 47.27 | 59.10 | 70.91 |
| 75 | 3 | 10;20 | 3 | 6.72 | 8.96 | 11.20 | 13.44 |
| 75 | 4 | 10;20 | 3 | 8.96 | 11.94 | 14.93 | 17.91 |
| 75 | 5 | 10;20 | 3 | 11.20 | 14.93 | 18.66 | 22.39 |
| 75 | 6 | 10;20 | 3 | 13.44 | 17.92 | 22.40 | 26.88 |
| 75 | 10 | 10;20 | 3 | 22.39 | 29.86 | 37.32 | 44.79 |
| 75 | 12 | 10;20 | 3 | 26.88 | 35.83 | 44.80 | 53.75 |
| 80 | 6 | 10;20 | 3 | 14.37 | 19.16 | 23.95 | 28.74 |
| 80 | 8 | 10;20 | 3 | 19.16 | 25.55 | 31.93 | 38.32 |
| 80 | 10 | 10;20 | 3 | 23.95 | 31.93 | 39.92 | 47.90 |
| 80 | 16 | 10;20 | 3 | 38.32 | 51.09 | 63.87 | 76.64 |
| 80 | 20 | 10;20 | 3 | 47.90 | 63.86 | 79.84 | 95.80 |
| 100 | 3 | 20 | 4 | 11.94 | 15.92 | 19.91 | 23.89 |
| 100 | 4 | 20 | 4 | 15.92 | 21.23 | 26.54 | 31.85 |
| 100 | 5 | 20 | 4 | 19.91 | 26.54 | 33.18 | 39.82 |
| 100 | 6 | 20 | 4 | 23.87 | 31.85 | 39.82 | 47.78 |
| 100 | 8 | 20 | 4 | 31.85 | 42.46 | 53.08 | 63.70 |
| 100 | 10 | 20 | 4 | 39.81 | 53.08 | 66.36 | 79.64 |
| 100 | 12 | 20 | 4 | 47.77 | 63.70 | 79.64 | 95.56 |
| 100 | 20 | 20 | 4 | 79.62 | 106.16 | 132.72 | 159.28 |
| 125 | 3 | 32 | 4 | 15.05 | 20.07 | 25.09 | 30.11 |
| 125 | 4 | 32 | 4 | 20.07 | 26.76 | 33.45 | 40.15 |
| 125 | 5 | 32 | 4 | 25.10 | 33.45 | 41.82 | 50.19 |
| 125 | 6 | 32 | 4 | 30.11 | 40.15 | 50.18 | 60.23 |
| 125 | 8 | 32 | 4 | 40.14 | 53.52 | 66.90 | 80.30 |
| 125 | 10 | 32 | 4 | 50.18 | 66.91 | 83.64 | 100.38 |
| 125 | 12 | 32 | 4 | 60.22 | 80.29 | 100.36 | 120.46 |
| 125 | 15 | 32 | 4 | 75.27 | 100.36 | 125.45 | 150.57 |
| 125 | 16 | 32 | 4 | 80.28 | 107.05 | 133.80 | 160.61 |
| 125 | 20 | 32 | 4 | 100.36 | 133.81 | 167.28 | 200.76 |
| 150 | 3 | 32 | 4 | 18.16 | 24.22 | 30.27 | 36.33 |
| 150 | 4 | 32 | 4 | 24.22 | 32.29 | 40.37 | 48.44 |
| 150 | 5 | 32 | 4 | 30.27 | 40.36 | 50.46 | 60.55 |
| 150 | 6 | 32 | 4 | 36.33 | 48.44 | 60.55 | 72.66 |
| 150 | 8 | 32 | 4 | 48.44 | 64.58 | 40.73 | 96.88 |
| 150 | 10 | 32 | 4 | 60.54 | 80.73 | 100.92 | 121.10 |
| 150 | 12 | 32 | 4 | 72.65 | 96.87 | 121.10 | 145.32 |
| 150 | 15 | 32 | 4 | 90.82 | 121.09 | 151.36 | 181.65 |
| 150 | 16 | 32 | 4 | 96.87 | 129.17 | 81.46 | 193.76 |
| 150 | 20 | 32 | 4 | 121.09 | 161.45 | 201.84 | 242.20 |
| 175 | 6 | 32 | 4 | 42.55 | 56.73 | 70.19 | 85.09 |
| 175 | 10 | 32 | 4 | 70.91 | 94.55 | 118.19 | 141.83 |
| 175 | 15 | 32 | 4 | 106.37 | 141.83 | 177.28 | 212.74 |
| 175 | 20 | 32 | 4 | 141.83 | 189.10 | 236.38 | 283.65 |
| 175 | 20 | 32 | 4 | 141.83 | 189.10 | 236.38 | 283.65 |
| 200 | 6 | 32 | 4 | 48.77 | 65.02 | 81.28 | 97.53 |
| 200 | 8 | 32 | 4 | 65.02 | 86.70 | 108.37 | 130.05 |
| 200 | 10 | 32 | 4 | 81.28 | 108.37 | 135.47 | 162.56 |
| 200 | 12 | 32 | 4 | 97.54 | 130.05 | 262.56 | 195.07 |
| 200 | 15 | 32 | 4 | 121.92 | 162.56 | 203.20 | 243.84 |
| 200 | 16 | 32 | 4 | 130.05 | 173.40 | 216.75 | 260.10 |
| 200 | 20 | 32 | 4 | 162.56 | 216.75 | 270.93 | 325.12 |
| 250 | 6 | 75 | 5 | 76.20 | 101.60 | 127.00 | 152.40 |
| 250 | 10 | 75 | 5 | 127.00 | 169.33 | 211.67 | 254.00 |
| 250 | 12 | 75 | 5 | 152.40 | 203.20 | 254.00 | 304.80 |
| 250 | 15 | 75 | 5 | 190.50 | 254.00 | 317.50 | 381.00 |
| 250 | 16 | 75 | 5 | 203.21 | 270.94 | 338.68 | 406.41 |
| 250 | 20 | 75 | 5 | 254.00 | 338.67 | 423.33 | 508.00 |
| 250 | 25 | 75 | 5 | 317.51 | 423.35 | 529.19 | 635.03 |
| 250 | 32 | 75 | 5 | 406.40 | 541.86 | 677.33 | 812.73 |
| 250 | 40 | 75 | 5 | 508.00 | 677.33 | 846.67 | 1016.00 |
| 300 | 10 | 127 | 5 | 152.92 | 203.89 | 254.87 | 305.39 |
| 300 | 12 | 127 | 5 | 83.50 | 24.67 | 305.85 | 367.00 |
| 300 | 15 | 127 | 5 | 229.38 | 305.84 | 382.31 | 458.76 |
| 300 | 16 | 127 | 5 | 244.67 | 326.23 | 407.80 | 489.35 |
| 300 | 20 | 127 | 5 | 305.84 | 407.78 | 509.73 | 611.67 |
| 300 | 25 | 127 | 5 | 382.31 | 509.75 | 637.19 | 764.63 |
| 300 | 32 | 127 | 5 | 489.34 | 652.45 | 815.57 | 978.68 |
| 350 | 12 | 203 | 5 | 214.60 | 286.14 | 357.67 | 429.21 |
| 350 | 15 | 203 | 5 | 268.25 | 357.67 | 447.09 | 536.51 |
| 350 | 16 | 203 | 5 | 286.14 | 381.52 | 476.90 | 572.28 |
| 350 | 20 | 203 | 5 | 357.67 | 476.89 | 596.12 | 715.34 |
| 350 | 20 | 203 | 10 | 704.78 | 939.97 | 1174.96 | 1468.70 |
| 350 | 25 | 203 | 5 | 447.09 | 596.12 | 745.15 | 894.18 |
| 350 | 25 | 203 | 10 | 881.22 | 1174.96 | 1468.70 | 1762.44 |
| 350 | 28 | 203 | 5 | 500.74 | 667.65 | 834.57 | 1001.48 |
| 350 | 28 | 203 | 10 | 986.97 | 1315.95 | 1644.94 | 1973.93 |
| 350 | 30 | 203 | 5 | 536.51 | 715.34 | 894.18 | 1073.01 |
| 350 | 30 | 203 | 10 | 1057.46 | 1409.95 | 1762.44 | 2114.92 |
| 350 | 32 | 203 | 5 | 572.27 | 763.03 | 953.79 | 1144.55 |
| 350 | 32 | 203 | 10 | 1127.96 | 1503.95 | 1879.93 | 2255.92 |
| 350 | 40 | 203 | 5 | 715.34 | 953.79 | 1192.24 | 1430.68 |
| 350 | 40 | 203 | 10 | 1409.95 | 1897.93 | 2349.92 | 2819.90 |
| 400 | 7.5 | 203 | 10 | 303.24 | 404.32 | 505.40 | 606.49 |
| 400 | 10 | 203 | 5 | 204.76 | 273.01 | 341.26 | 409.51 |
| 400 | 12 | 203 | 5 | 245.70 | 327.61 | 409.51 | 491.41 |
| 400 | 15 | 203 | 5 | 307.13 | 409.51 | 511.88 | 614.26 |
| 400 | 20 | 203 | 5 | 409.51 | 546.01 | 682.51 | 819.01 |
| 400 | 20 | 203 | 10 | 808.65 | 1078.20 | 1347.75 | 1617.30 |
| 400 | 25 | 203 | 5 | 511.88 | 682.50 | 851.14 | 1021.37 |
| 400 | 25 | 203 | 10 | 1010.81 | 1347.75 | 1684.68 | 2021.62 |
| 400 | 32 | 203 | 5 | 655.22 | 873.62 | 1092.02 | 1310.42 |
| 400 | 32 | 203 | 10 | 129.84 | 1725.12 | 2156.39 | 2587.67 |
| 400 | 40 | 203 | 5 | 819.02 | 1092.03 | 1365.03 | 1638.04 |
| 400 | 40 | 203 | 10 | 1617.30 | 2156.39 | 2695.49 | 3234.58 |
| 400 | 50 | 203 | 5 | 1023.77 | 1365.03 | 1706.28 | 2047.54 |
| 400 | 50 | 203 | 10 | 2021.62 | 2695.49 | 3369.37 | 4043.24 |
| 500 | 15 | 305 | 10 | 762.00 | 1016.00 | 1270.00 | 1524.00 |
| 500 | 20 | 305 | 10 | 1016.00 | 1354.67 | 1693.33 | 2032.00 |
| 500 | 32 | 305 | 10 | 1625.60 | 2167.47 | 2622.93 | 3251.20 |
| 500 | 40 | 305 | 10 | 2032.00 | 2709.34 | 3386.68 | 4064.00 |
| 500 | 50 | 305 | 10 | 2540.00 | 3386.68 | 4233.33 | 5080.00 |
?
