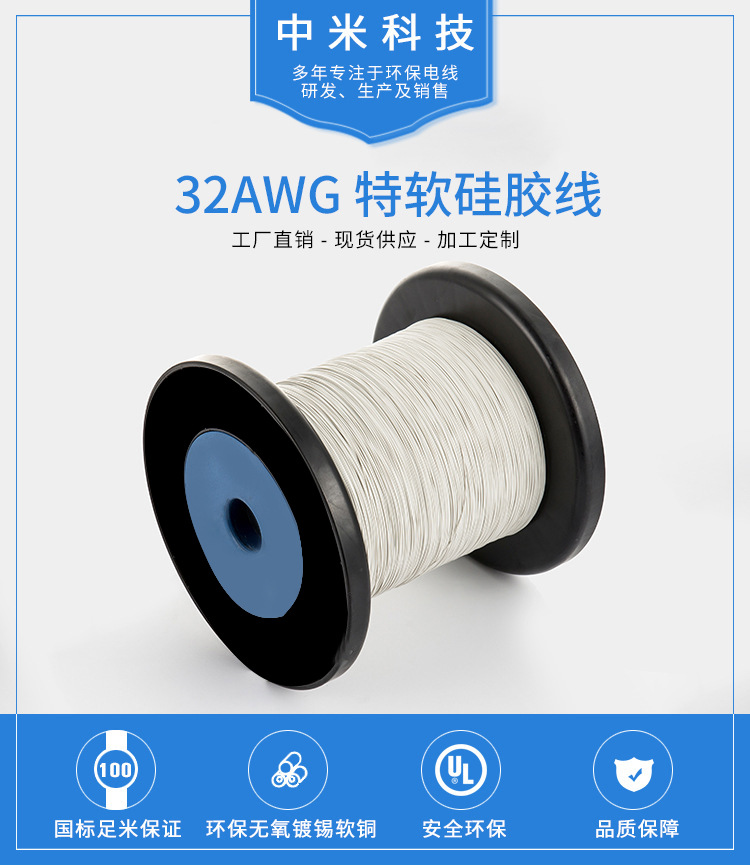

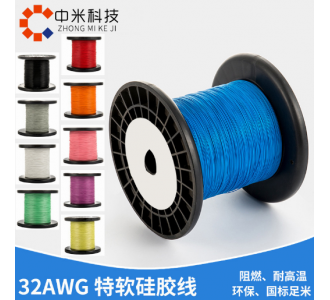

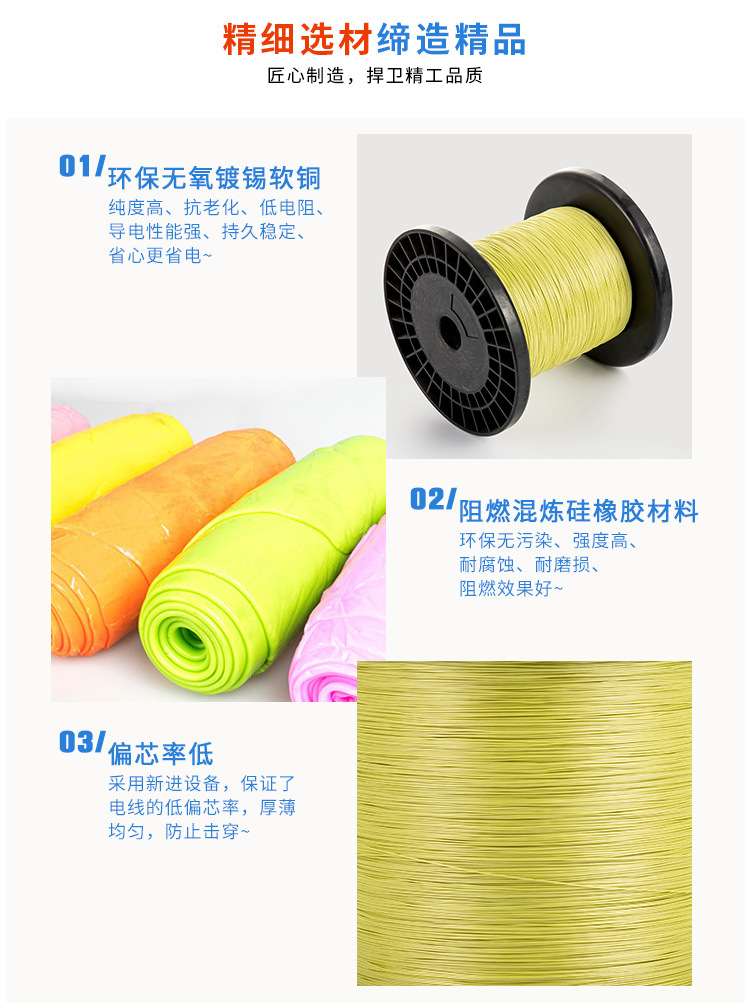

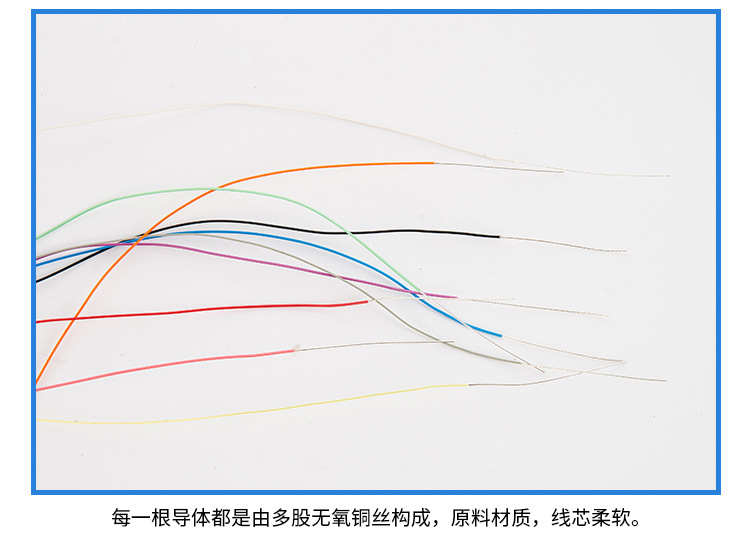

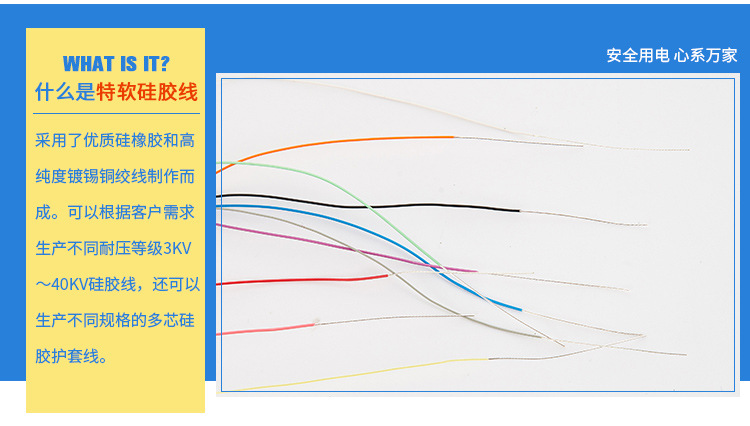

特軟硅膠線0.08環保無氧鍍錫軟銅
|
|||||
| 導體Conductor | 絕緣體Insulator | 包裝Packing | |||
| 線號 AWG |
導線結構 Internal Construction (NO.×φmm) |
直徑 Diameter (mm) |
絕緣厚度 Insulation Thickness (mm) |
成品外徑 External Diameter (mm) |
米/卷 (Mt/Coil) |
|
32 30 |
11×0.08 11×0.08 |
0.30 0.30 |
0.15 0.25 |
0.60 0.80 |
2500/軸 |
| 28 | 16×0.08 | 0.36 | 0.38 | 1.20 | 400 |
| 26 | 30×0.08 | 0.46 | 0.55 | 1.50 | 400 |
| 24 | 40×0.08 | 0.61 | 0.55 | 1.60 | 400 |
| 22 | 60×0.08 | 0.72 | 0.49 | 1.70 | 400 |
| 20 | 100×0.08 | 0.92 | 0.44 | 1.80 | 400 |
| 18 | 150×0.08 | 1.13 | 0.59 | 2.30 | 200 |
| 16 | 252×0.08 | 1.47 | 0.77 | 3.00 | 200 |
| 14 | 400×0.08 | 1.85 | 0.83 | 3.50 | 200 |
| 13 | 500×0.08 | 2.00 | 1.00 | 4.00 | 100 |
| 12 | 680×0.08 | 2.41 | 1.05 | 4.50 | 100 |
| 11 | 750×0.08 | 2.53 | 1.20 | 5.00 | 100 |
| 10 | 1050×0.08 | 2.90 | 1.30 | 5.50 | 100 |
| 8 | 1650×0.08 | 3.50 | 1.50 | 6.50 | 100 |
| 7 | 2400×0.08 | 4.50 | 1.35 | 7.20 | 100 |
| 6 | 3200×0.08 | 5.20 | 1.65 | 8.50 | 100 |
| 4 | 5000×0.08 | 7.20 | 2.40 | 12.00 | 50 |
?
